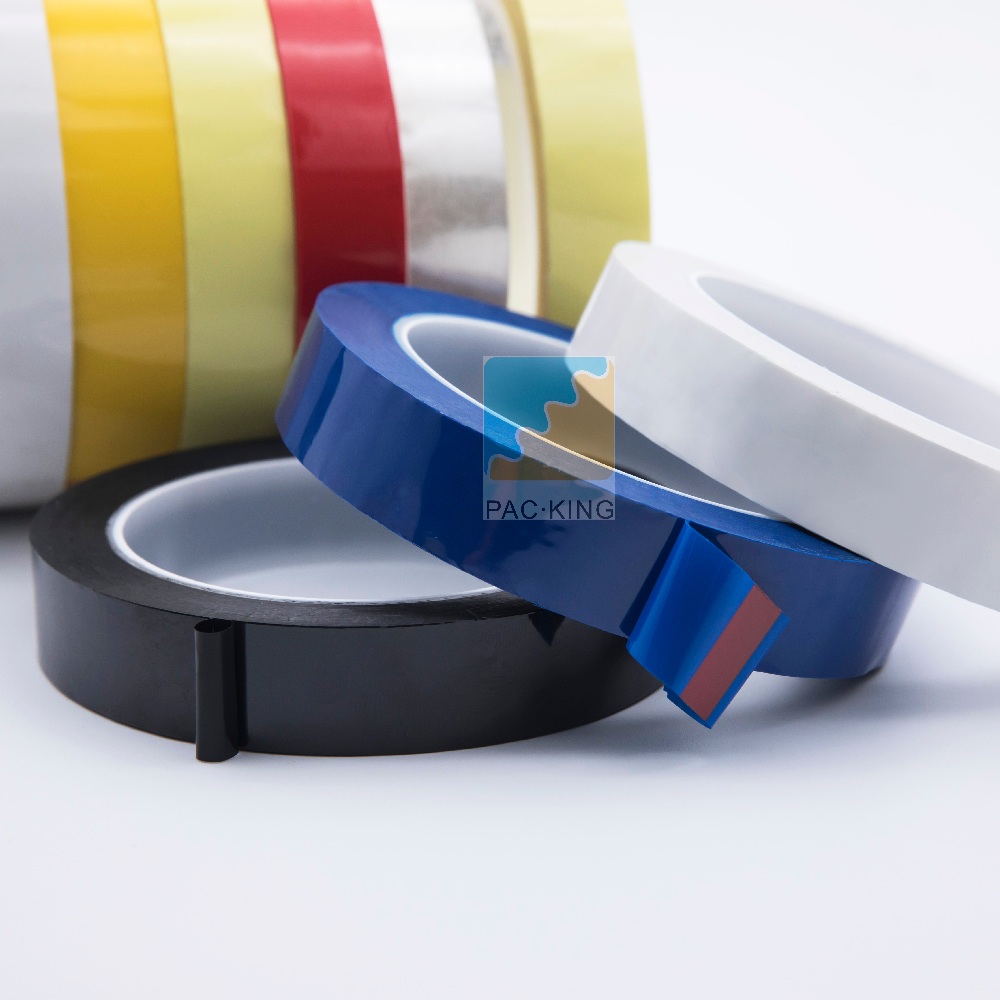

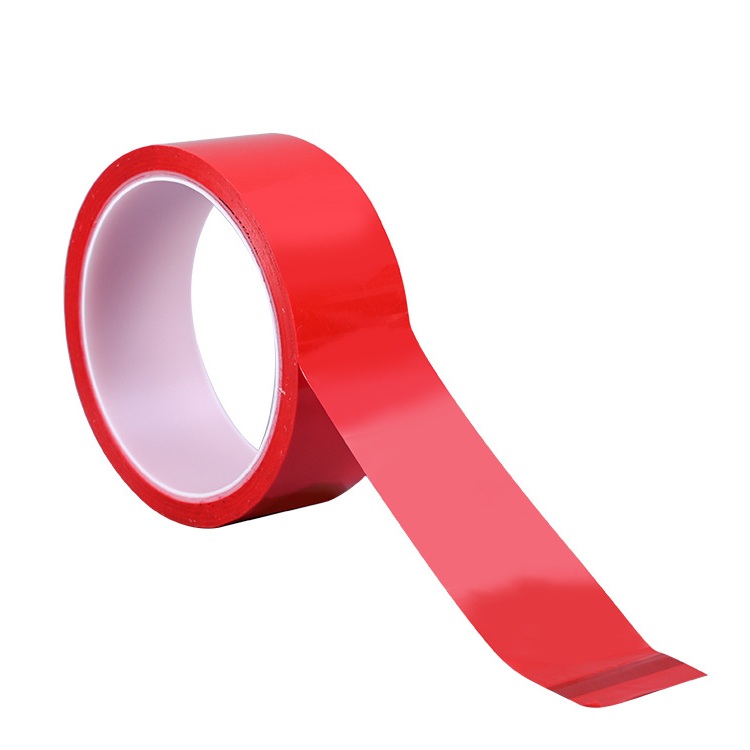

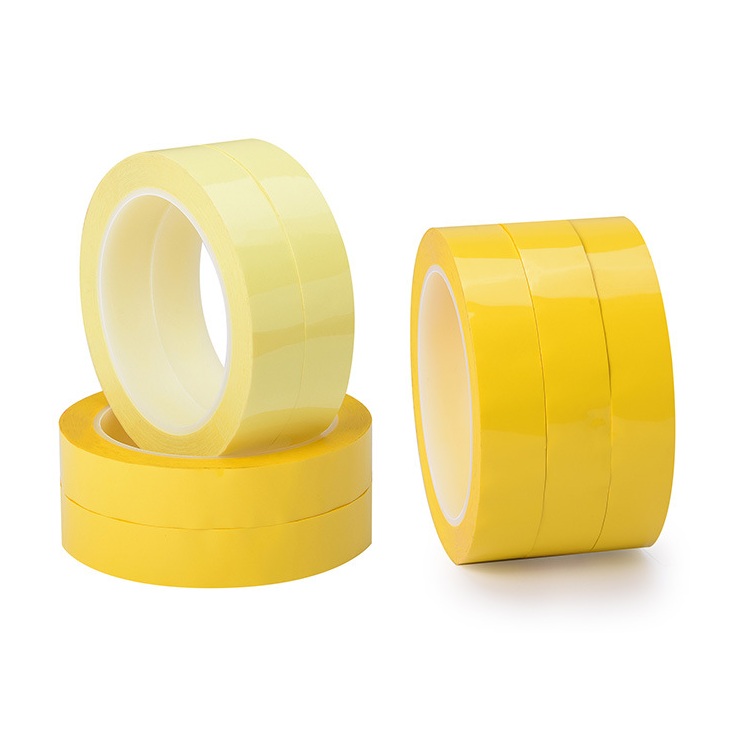

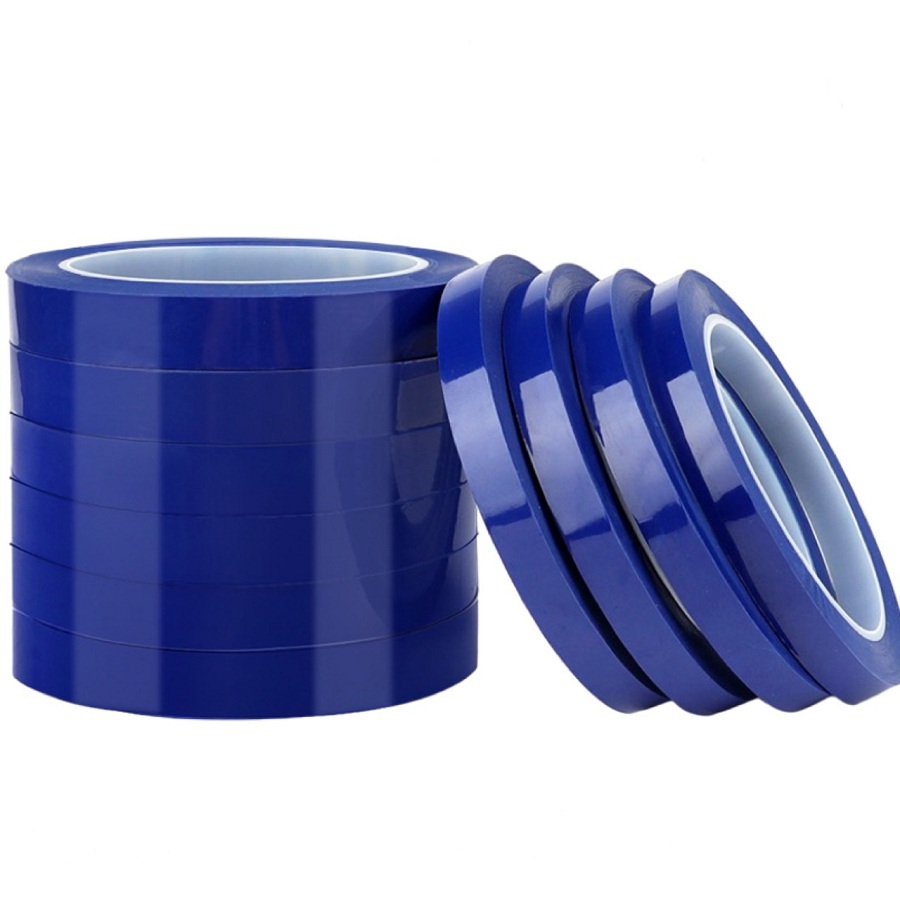

Mylar tape is using polyester film as backing material and coated with solvent acrylic adhesive. It is flame retardant and many colors are available. It is used for insulating electric and electronic components.
Share
Details of Mylar Tape
Material: PET film
Adhesive: Solvent acrylic adhesive

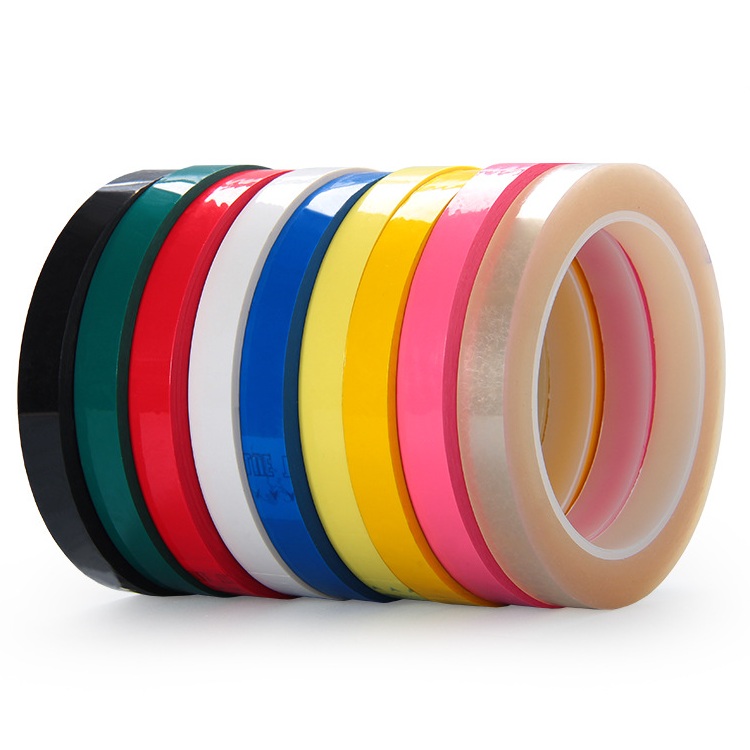

Color: Red / Dark yellow / Black / Orange / Pink / White / Light yellow / Green / Blue
Thickness: 0.05mm/0.055mm/0.06mm/0.08mm/0.11mm

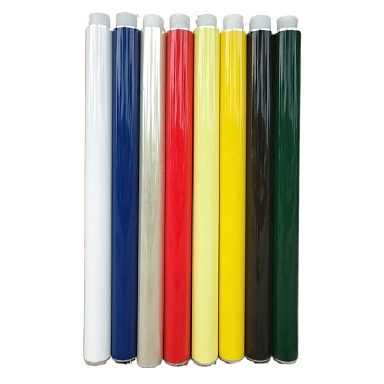

Size: 1060mm x 2000m(Jumbo roll size)
1060mm x 66m or customized (Log roll size)
10mm/20mm x 66m or customized (Cut roll size)

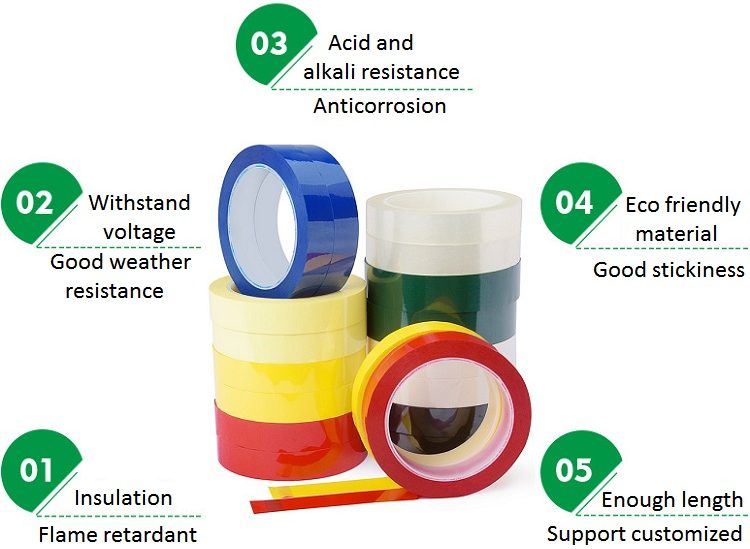

Features of Mylar Tape
Technical Data of Mylar Tape
| Carrier | Polyester film | |
| Adhesive | Coated with acrylic adhesive | |
| Description | Test result | Unit |
| Total thickness | 50±2 | mic |
| Carrier thickness | 25 | mic |
| Adhesive thickness | 25 | mic |
| Tension Strength | 3 | KN/M |
| Elongation at break | 45 | % |
| Peel adhesion | 300 | N/25mm |
| Breakdown voltage | 4.2 | KV |
| Coefficient of heat-resistant | -10~+130 | °C |
It is suitable for insulation and fixing of various motors and electronic components such as transformers, capacitors, relays, voltage regulators, motors, etc., motor stator coil covering, motor coil fixing, power transformer coil wrapping and outer insulation, and circuit board impregnation process. In the middle, cover the part of the gold finger to prevent the immersion and pollution of the electroplating solution, and protect the circuit board.
