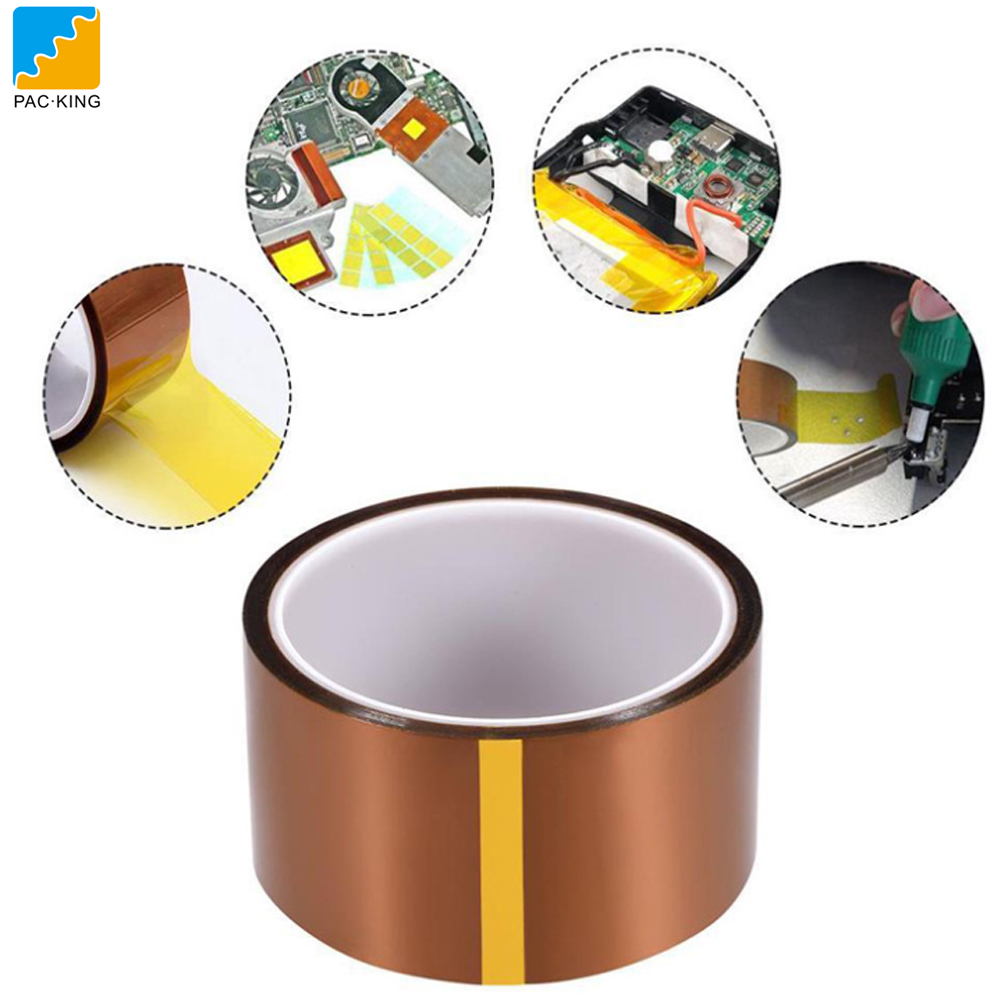

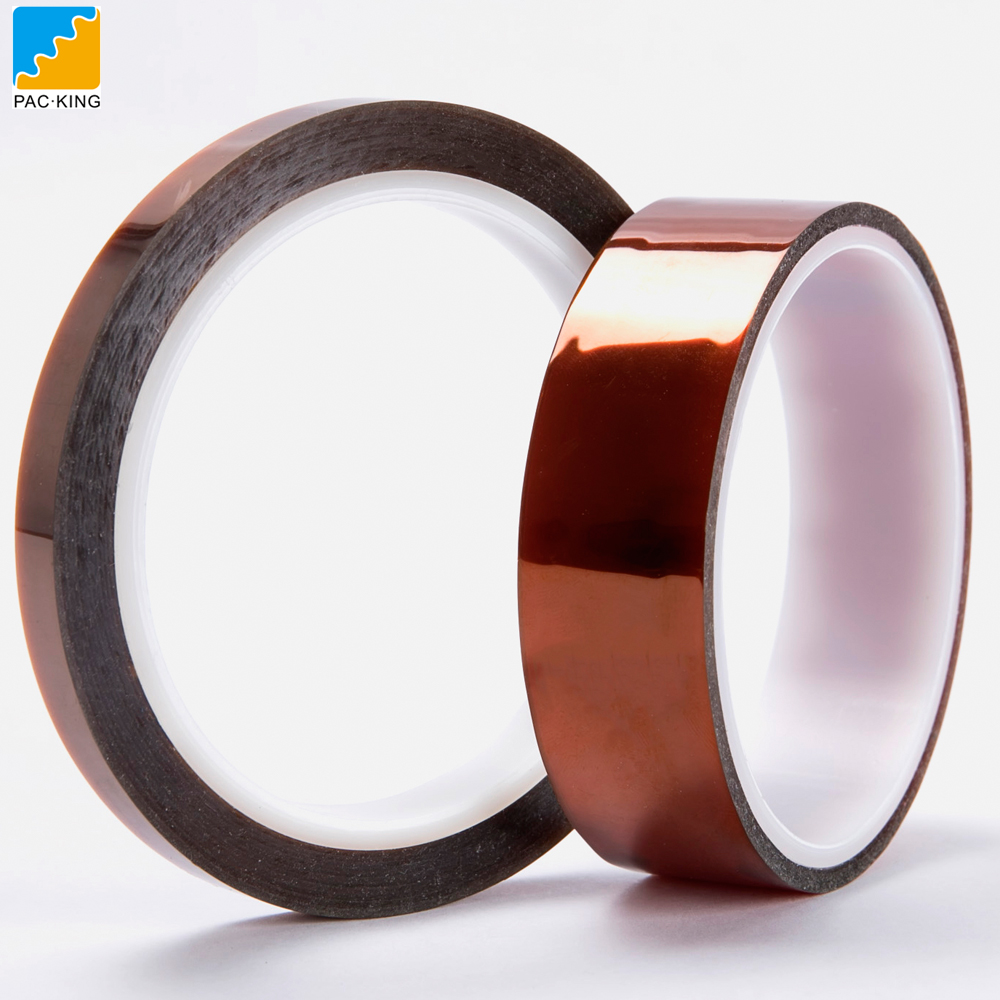

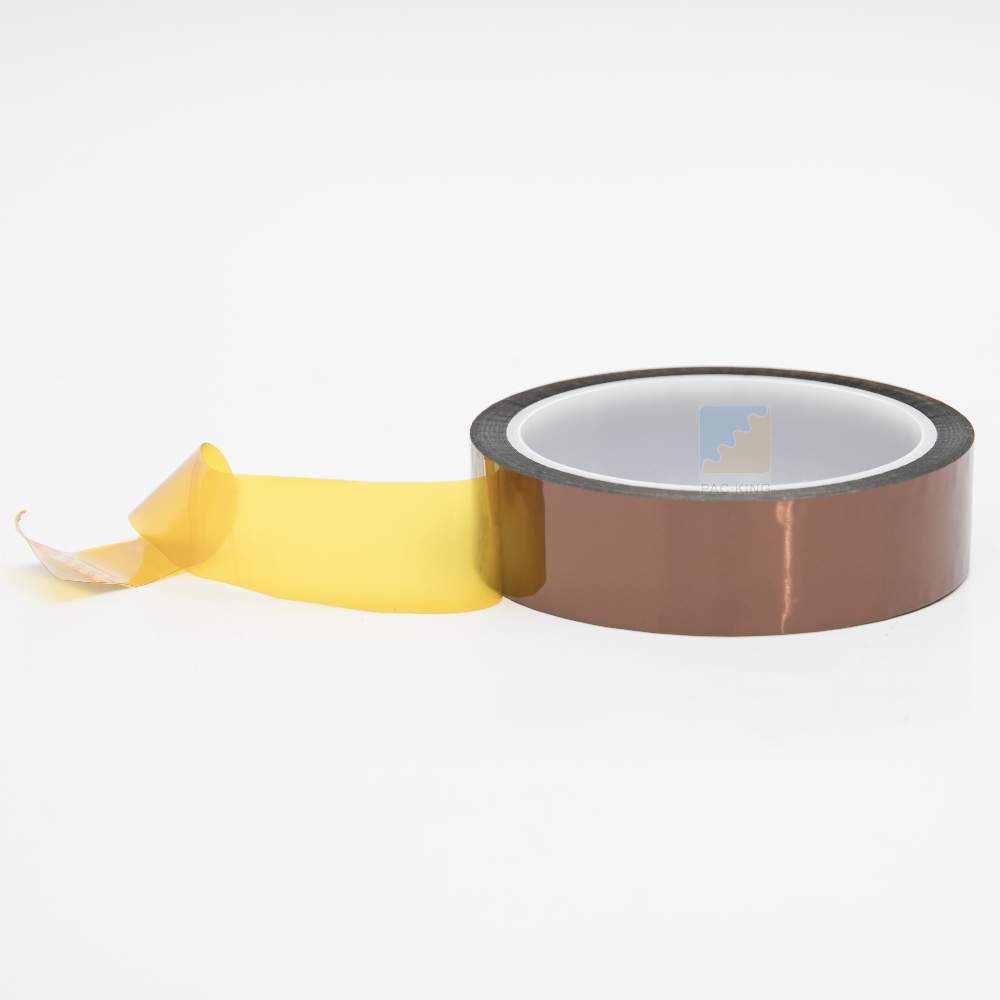

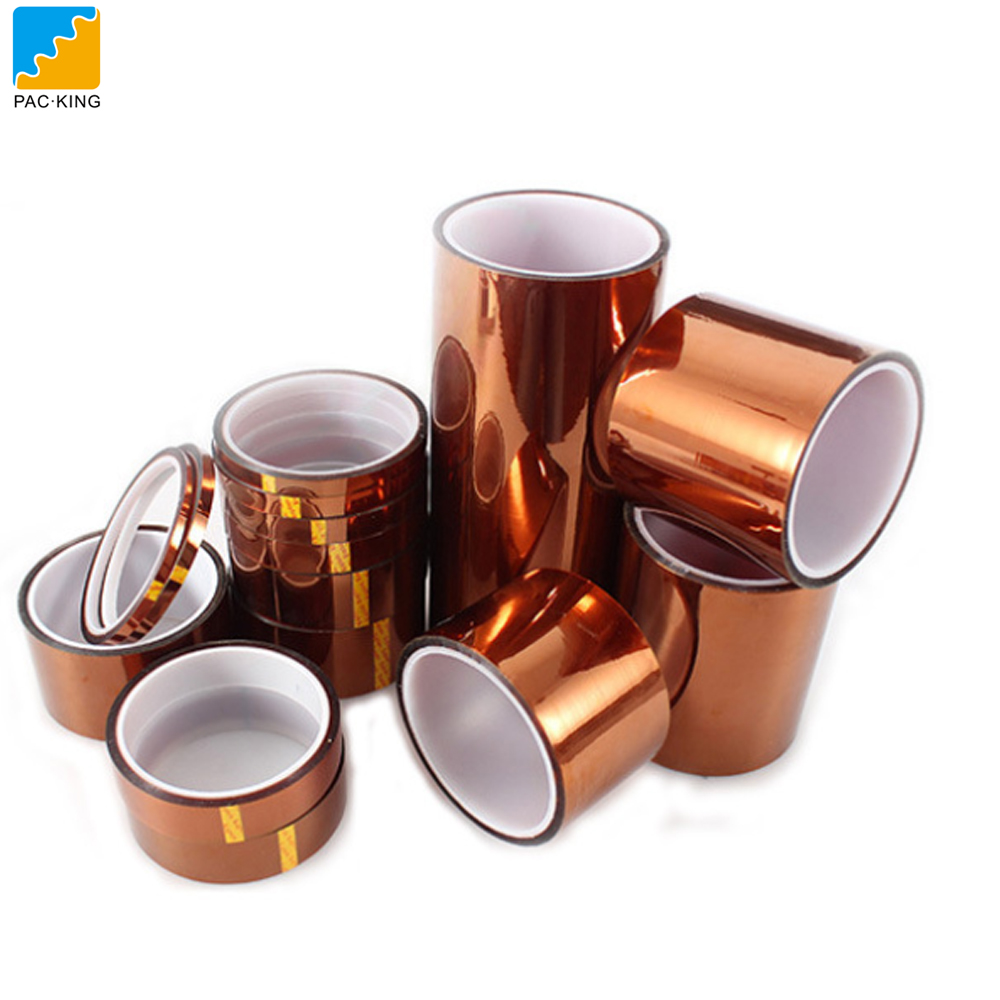

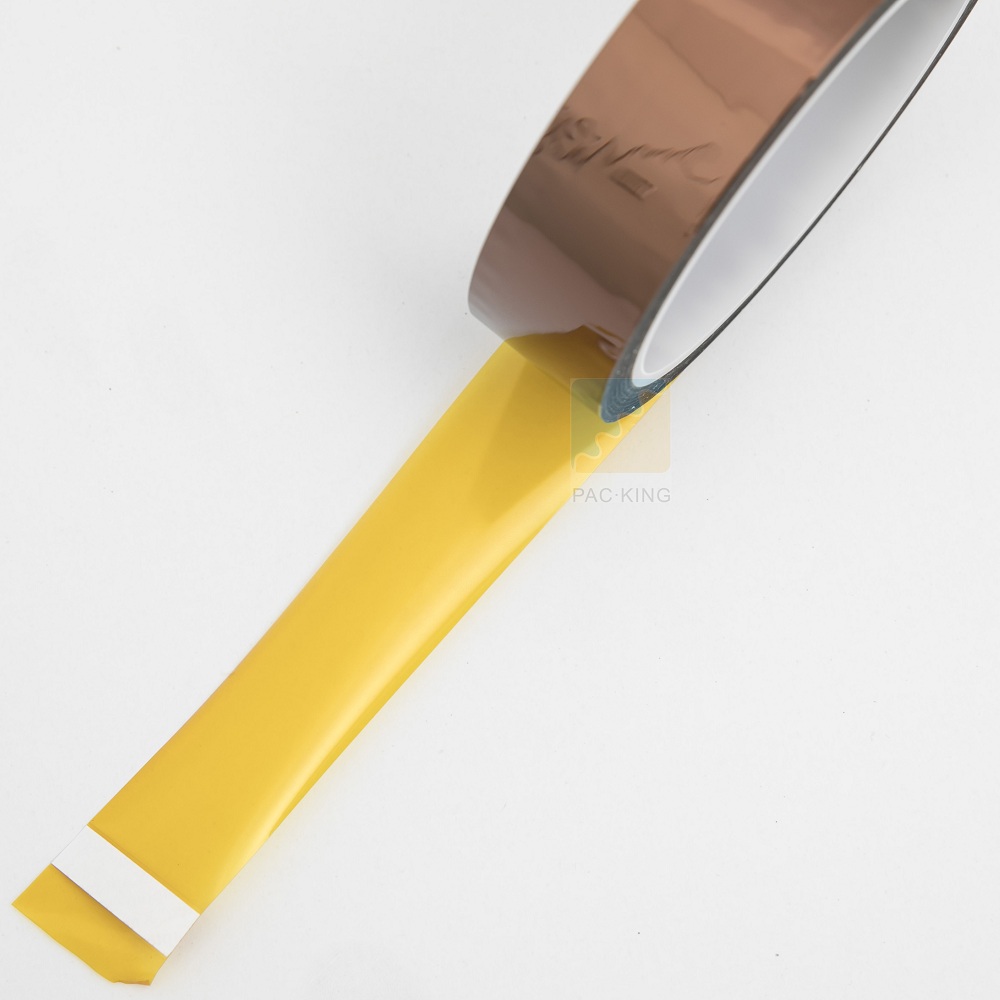

Polyimide tape is using brown polyimide film as backing material and coated with silicone adhesive. It is used for insulating electric and electronic components.
Share
Details of Polyimide Tape
Adhesive: Silicone adhesive
Carrier: Polyimide film
Color: Brown
Size: 500mm * 33m (log roll size)
9mm * 33m or customized (cut roll size)
Features:
Waterproof & Insulation
High temperature resistance
Acid and alkali resistance
super adhesion, no residual glue
Technical Datas of Polyimide Tape
|
Polyimide Tape(We can make different sizes) |
||
|
Backing |
Polyimide Film |
|
|
Adhesive |
Silicone Adhesive |
|
|
Total Thickness |
60 micron |
|
|
Application |
For insulating electric and electronic components |
|
|
Specification |
PKT60 |
PKT85 |
|
Total thickness |
0.06mm (60 micron) |
0.085mm (85micron) |
|
Adhesive Strength |
6.5N/25mm |
5-6N/25mm |
|
Tensile strength |
14KG/25mm |
19-22kg/25mm |
|
Elongation |
65% |
≥50% |
|
Anti corrosive |
1.0 |
— |
|
Temperature resistance |
260° |
260° |
|
voltage breakdown |
6.5KV |
10KV |
|
Length |
33M |
33M |
|
Width |
0-500mm |
0-500mm |

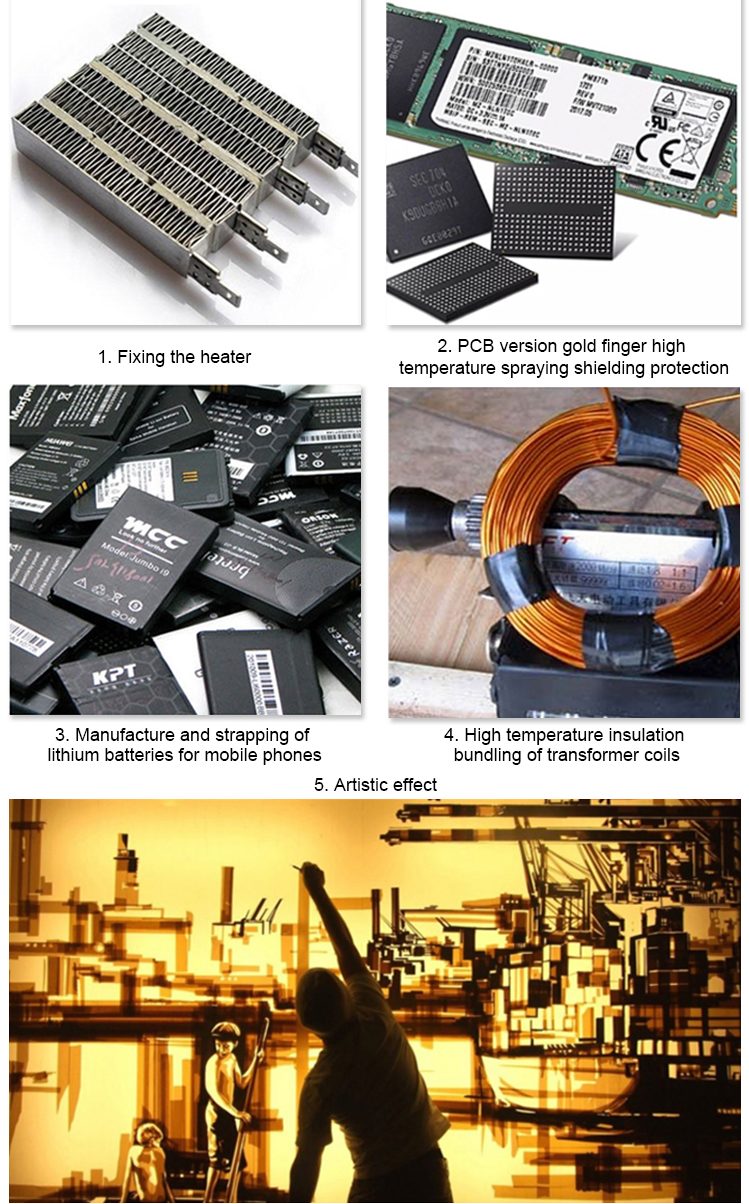

Applications of Polyimide Tape
It is used for insulating electric and electronic components.
