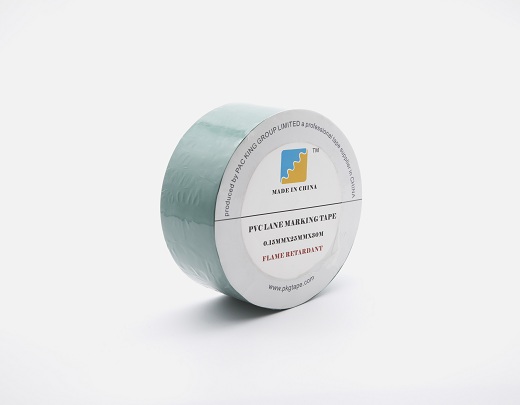

PVC Floor Marking Tape

PVC floor marking tape is using soft PVC film as backing material and coated with rubber based adhesive. We have both solid color or mixed color. It is used for identification and protection in the ground, pillar, building and traffic area,warning and marking of hazardous areas.

Details of PVC Floor Marking Tape

Adhesive: Rubber

Thickness: 120mic – 200mic

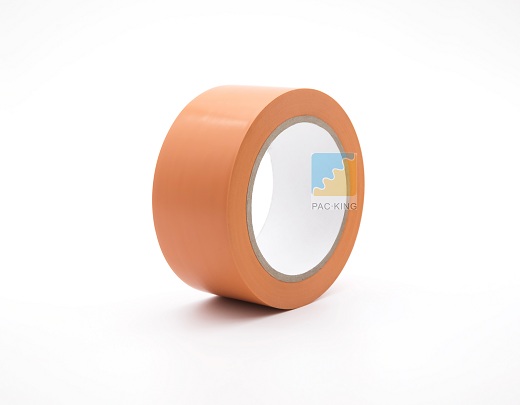

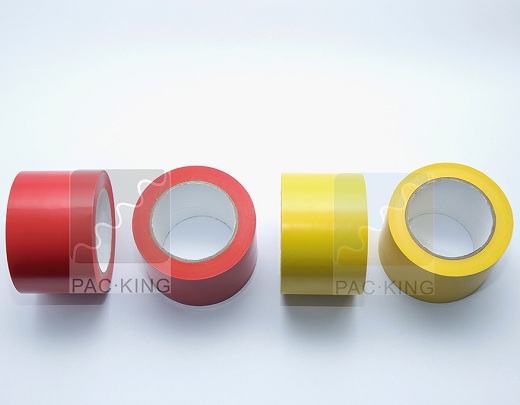

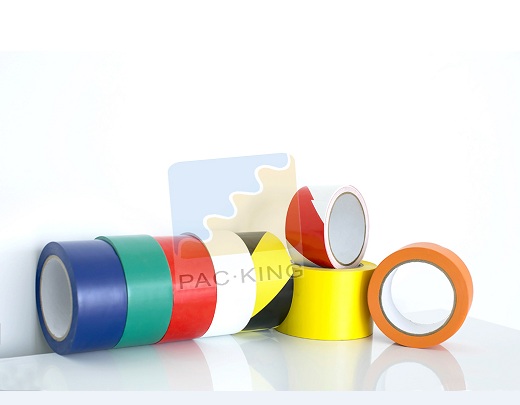

Single Color: Red/ Green/ Blue/ White/ Orange/ Yellow, etc

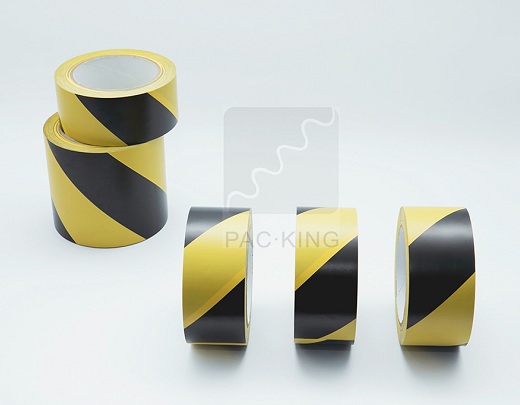

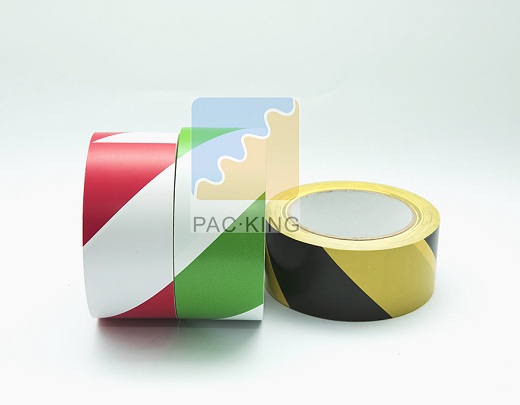

Double Color: Green & white / Black & yellow / Red & white

Size: 1250mm × 30m(Log roll size)

          48mm/50mm × 30m or customized(Cut roll size)

Features of PVC Floor Marking Tape

Anti-static

Waterproof

High adhesion & Wear resistance

Moisture & Corrosion resistance

Customized sizes available

Accordance with the requirements of the RoHS directive

Technical Data of PVC PVC Floor Marking Tape

Width 19mm – 1250mm
Thickness 0.15mm 0.17mm
Part No. PFM15 PFM17
Tensile Strength 24N/cm 26N/cm
Elongation 140% 150%
180°Peel Adhesion 1.5N/cm
Temperature 80°C ( 176°F )
Voltage 600V

Video of PVC PVC Floor Marking Tape

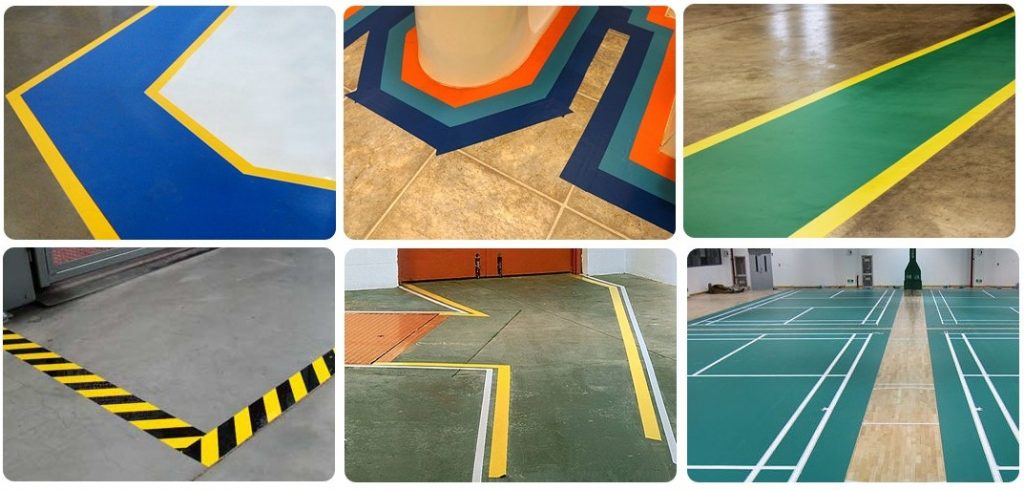

Application of PVC Floor Marking Tape

It is used for identification and protection in the ground, pillar, building and traffic area,warning and marking of hazardous areas.
