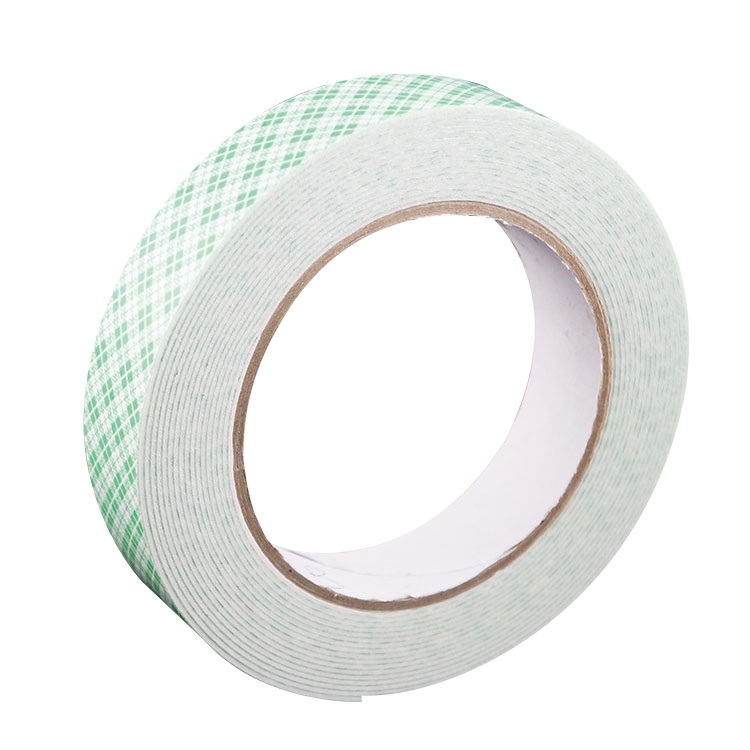

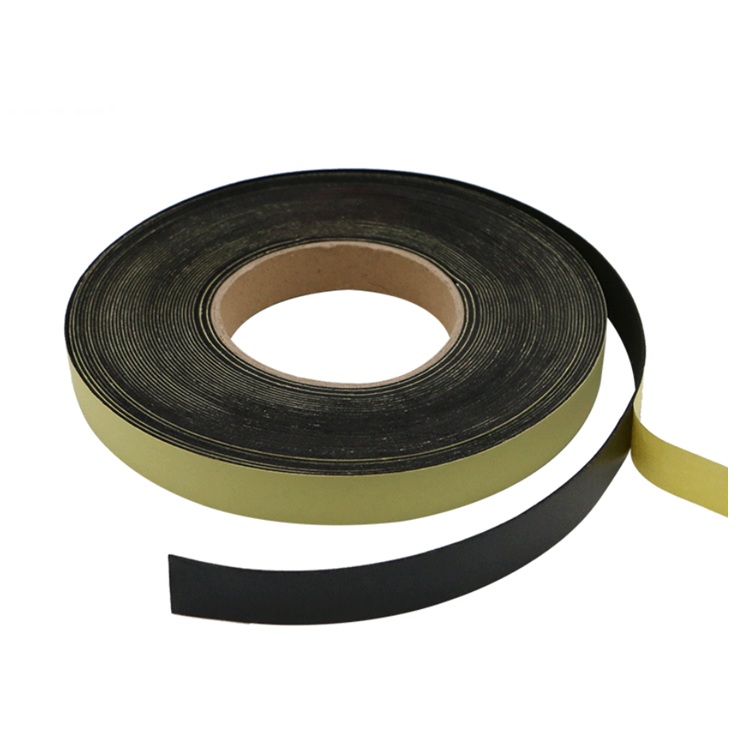

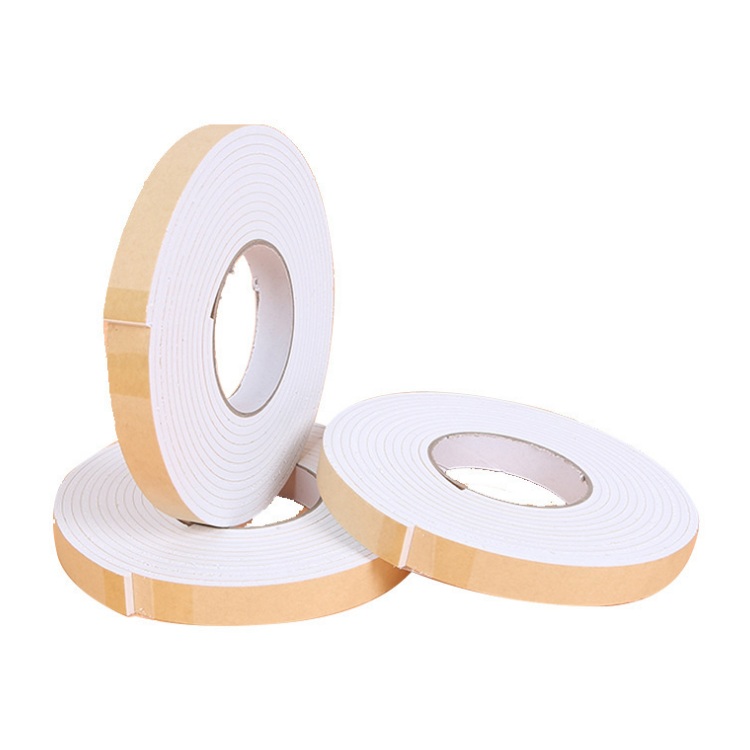

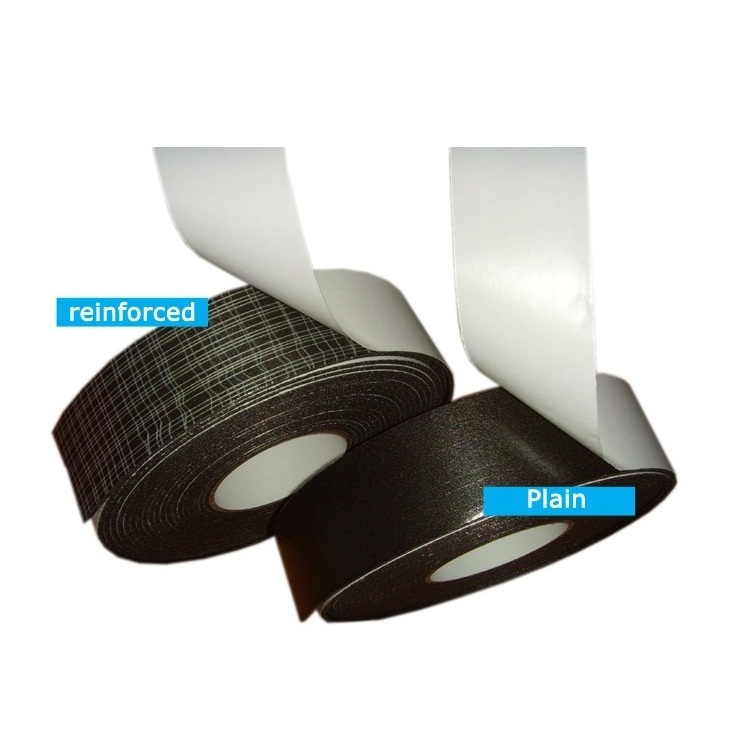

Single sided foam tape is using foam (EVA, PE) as backing material coated with solvent acrylic and hot melt adhesive. Thicknesses are from 0.4mm to 12mm.
Details of Single Sided Foam Tape
Liner: White / Yellow / Brown / Green trunk paper
Green / Blue / Red film
Adhesive: Hot melt / Solvent acrylic
Foam color: White / Grey / Black
PE foam density (kg/m3): 32 / 48 / 64 / 96 / 192 / 240
EVA foam density: 38 shore
Technical Data of Single Sided Foam Tape
|Part No.||Backing||Adhesive||Density||Total thickness|
|SPF1510||PE foam||Solvent acrylic||64-67kg/m3||1mm|
|SPF1510M||PE foam||Hot melt adhesive||64-67kg/m3||1mm|
|SPF1010||PE foam||Solvent acrylic||96-100kg/m3||2mm|
|SPF1010M||PE foam||Hot melt adhesive||96-100kg/m3||2mm|
|SEF10||PE foam||Solvent acrylic||38 shore||1mm|
|SEF10M||PE foam||Hot melt adhesive||38 shore||1mm|
|SEF20||PE foam||Solvent acrylic||38 shore||2mm|
|SEF20M||PE foam||Hot melt adhesive||38 shore||2mm|
Applications of Single Sided Foam Tape
For holding hooks, racks and photo frame;

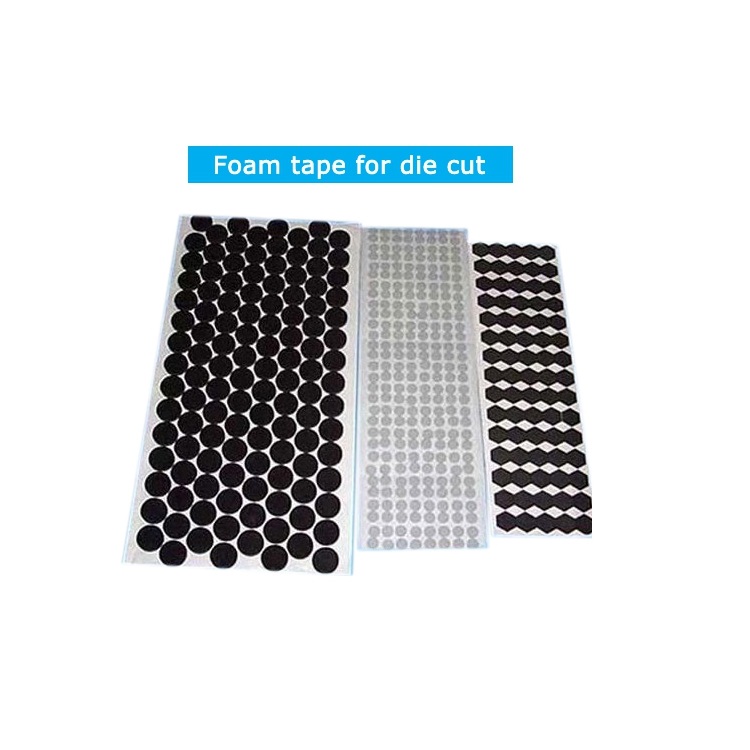

For die cut, cushioning, shockproof and sealing;
For pipeline wrapping for air conditions, auto trim attachment, door sealing strips, etc.
