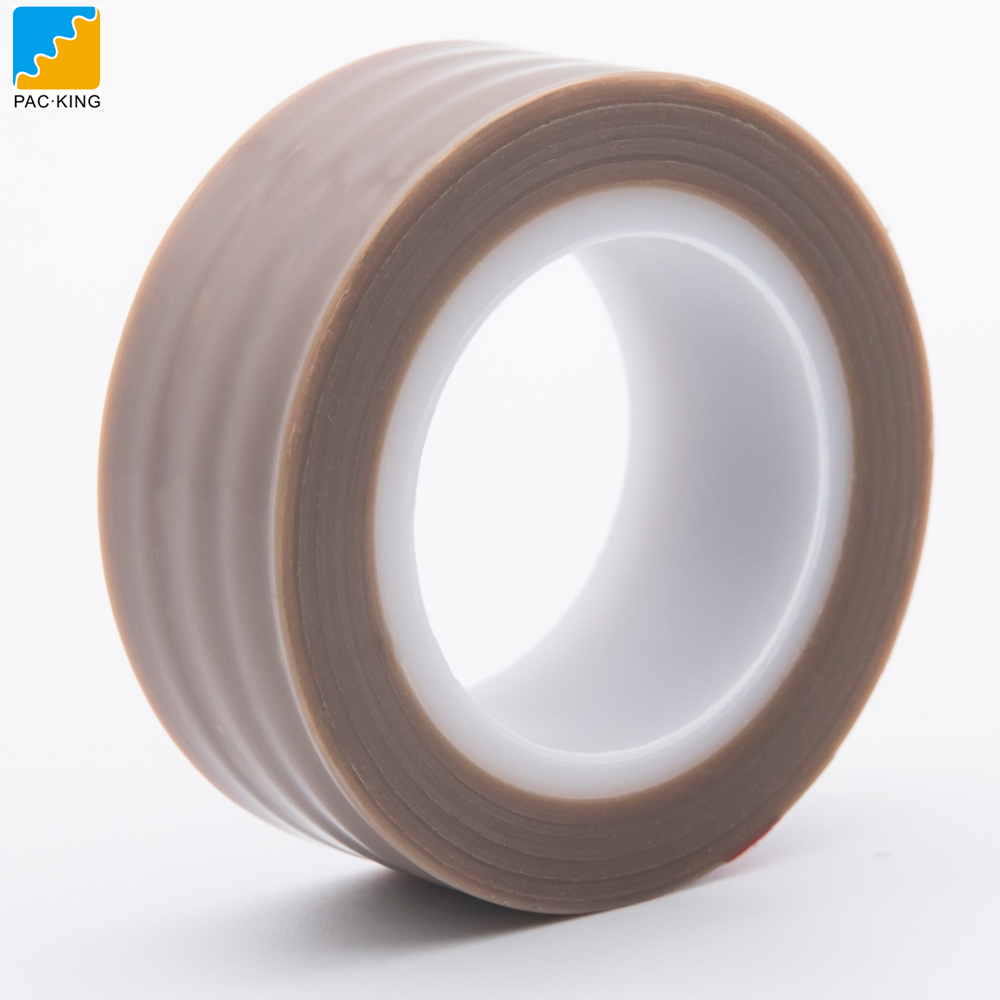

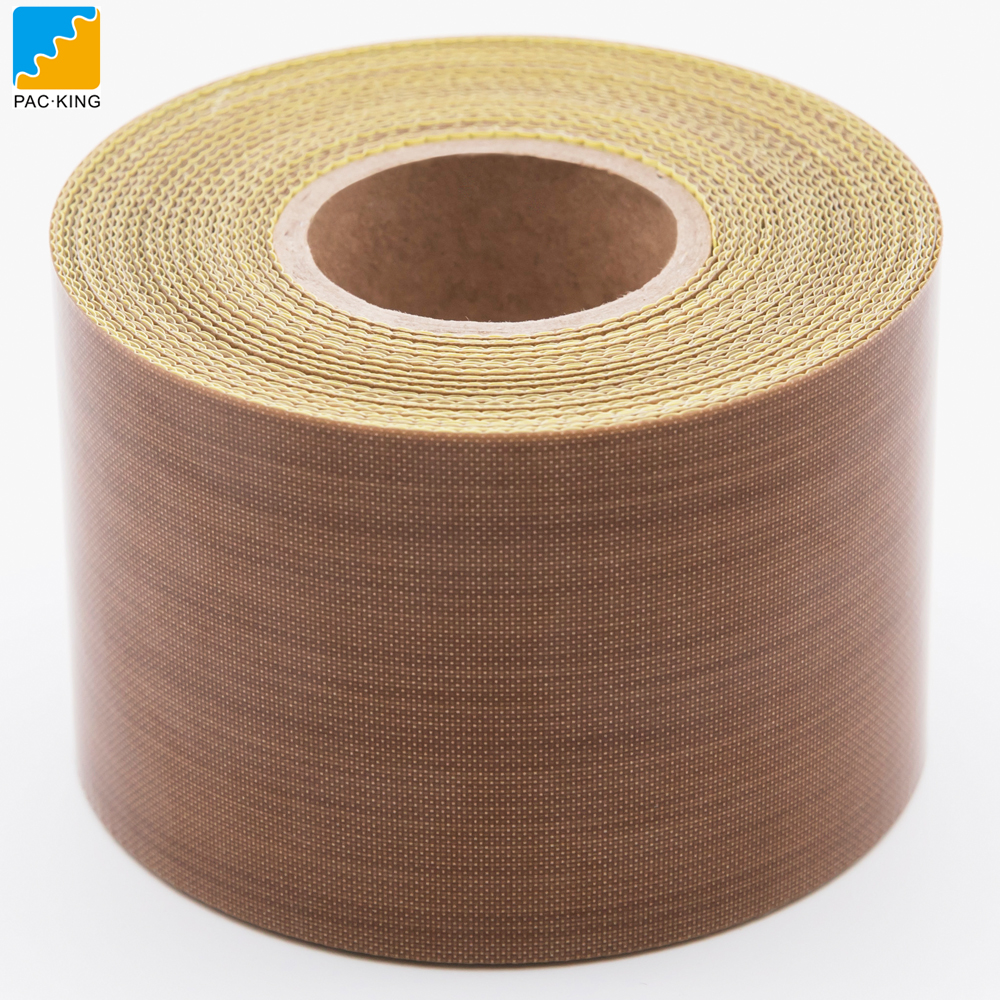

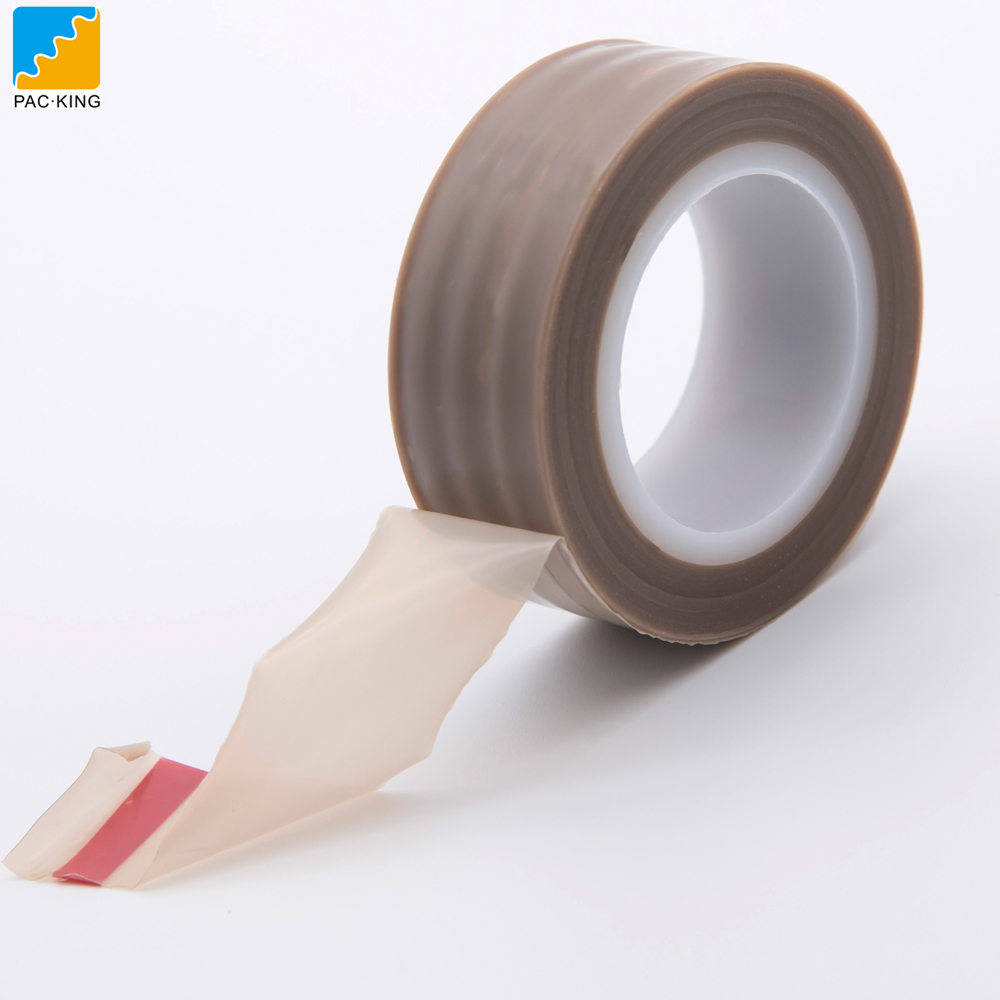

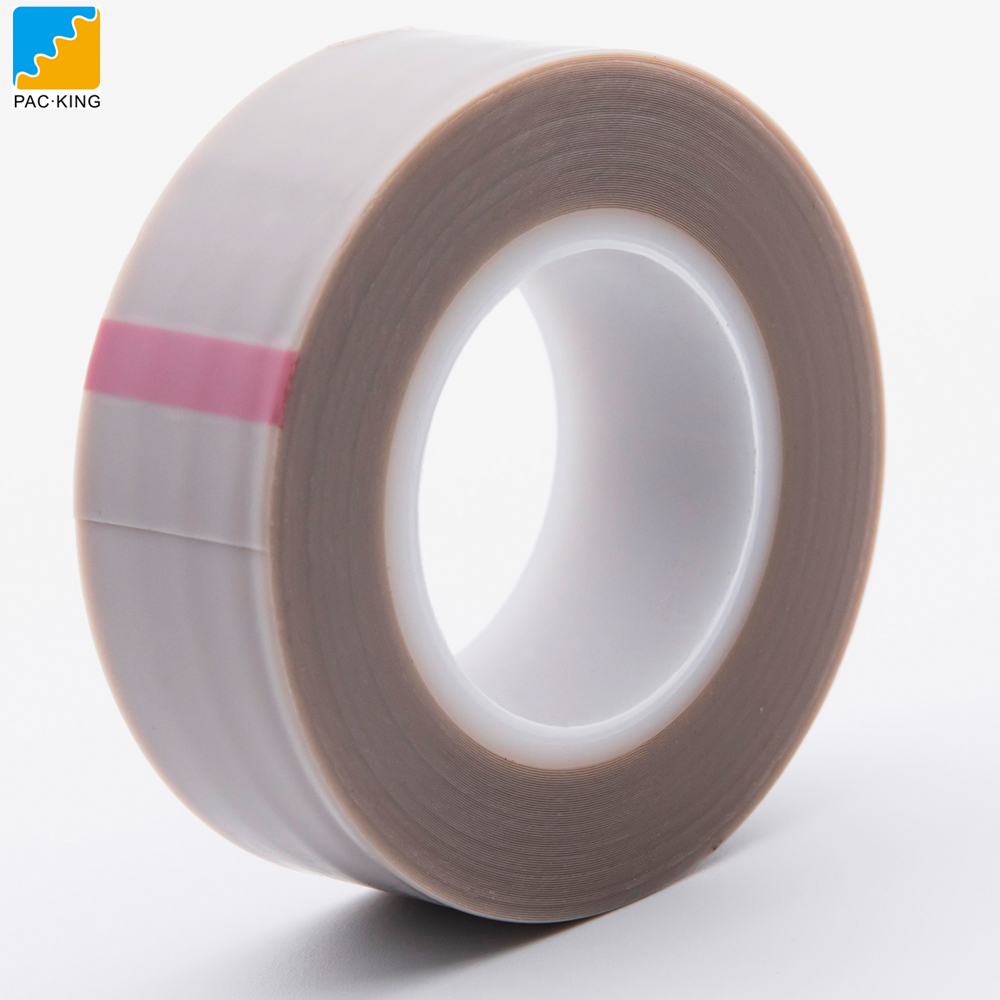

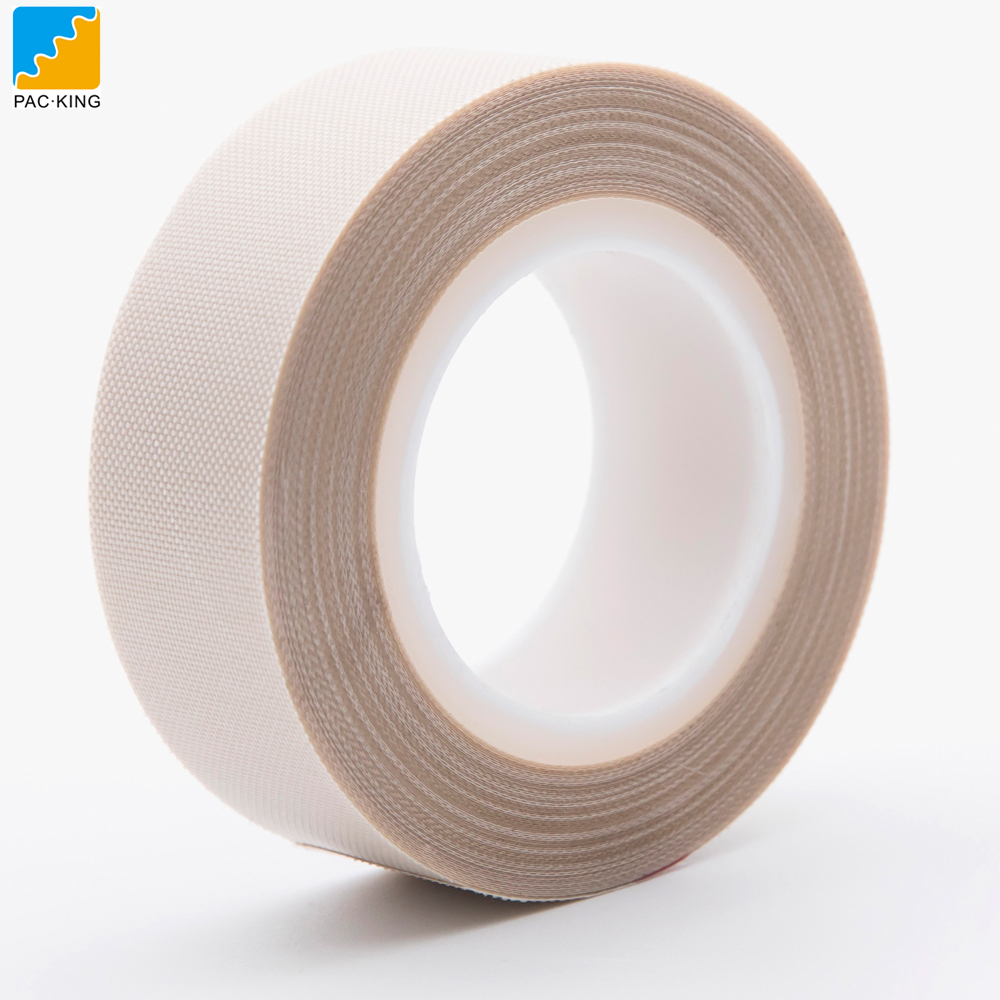

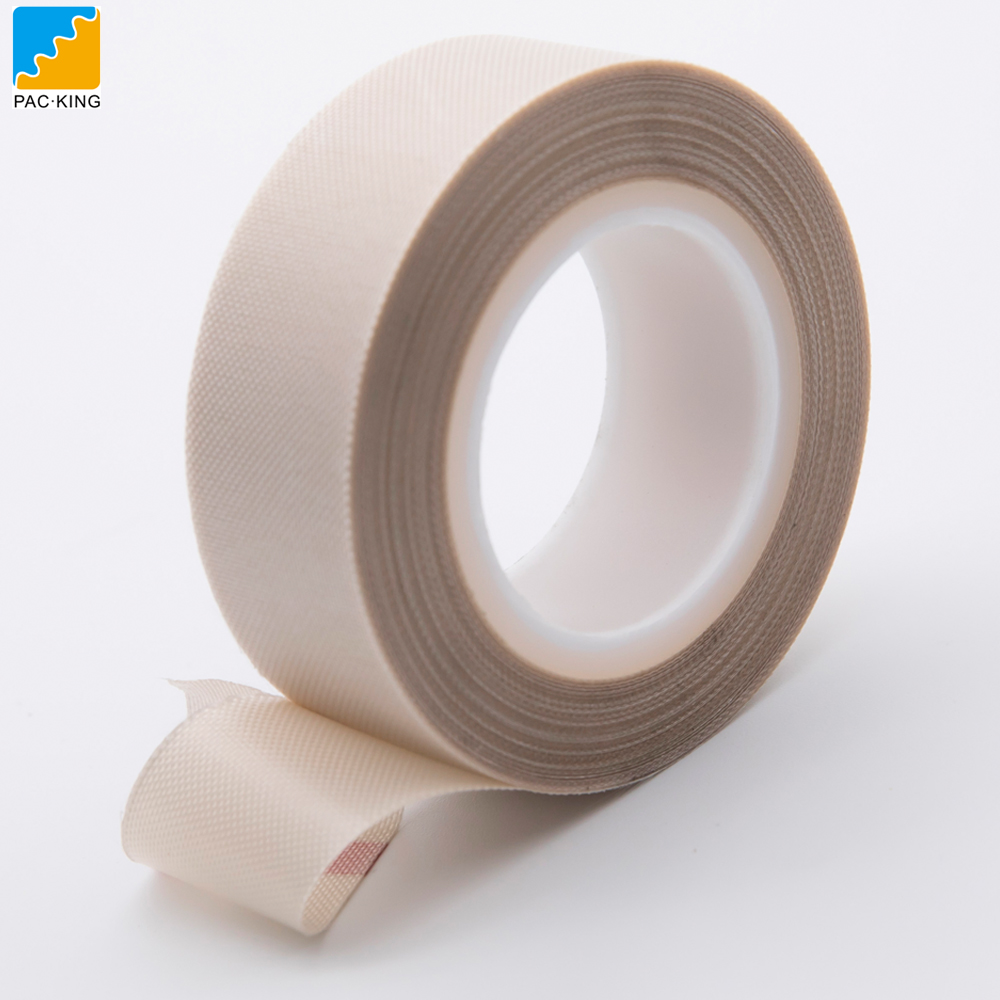

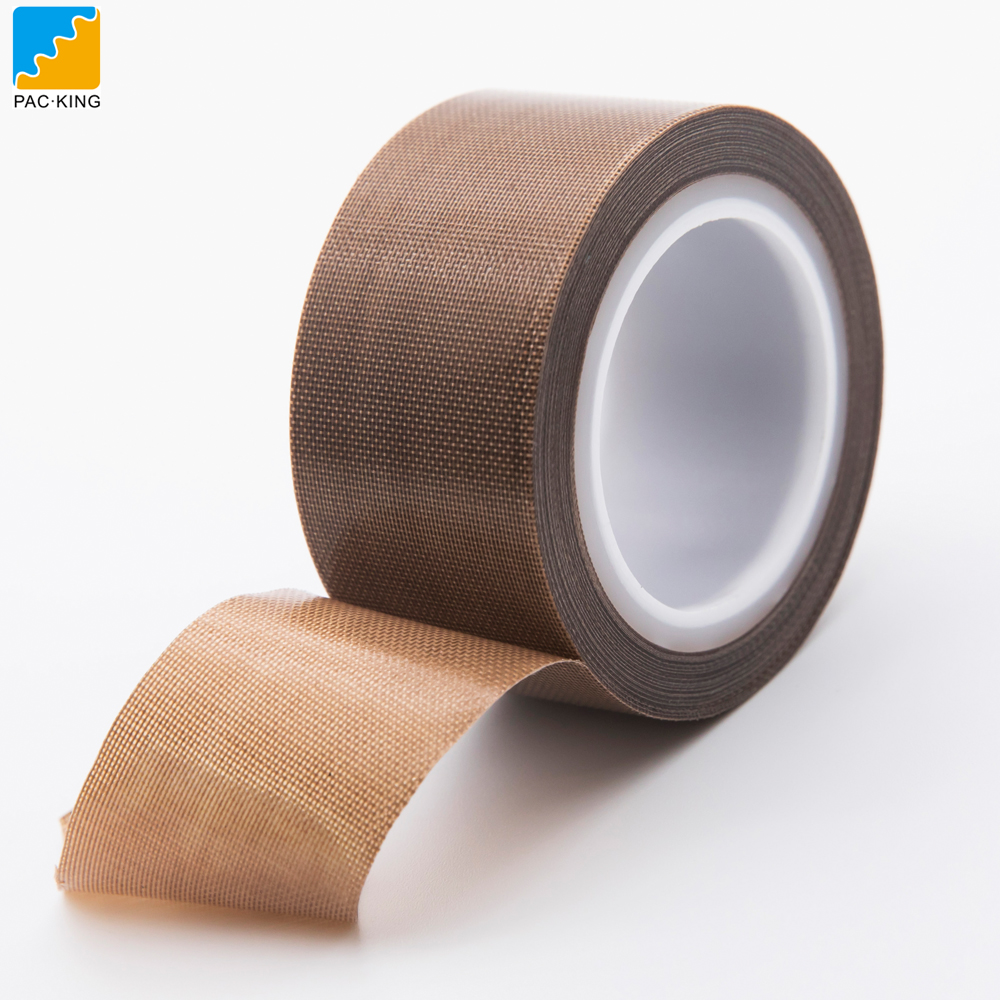

PTFE fiberglass adhesive tape is using Teflon PTFE fiberglass as the backing material and coated with ( or without ) silicon adhesive. It is mainly used for electronic appliance, such as cooking mat series, conveyor belt, fusing belt, mesh belt, etc.
Share

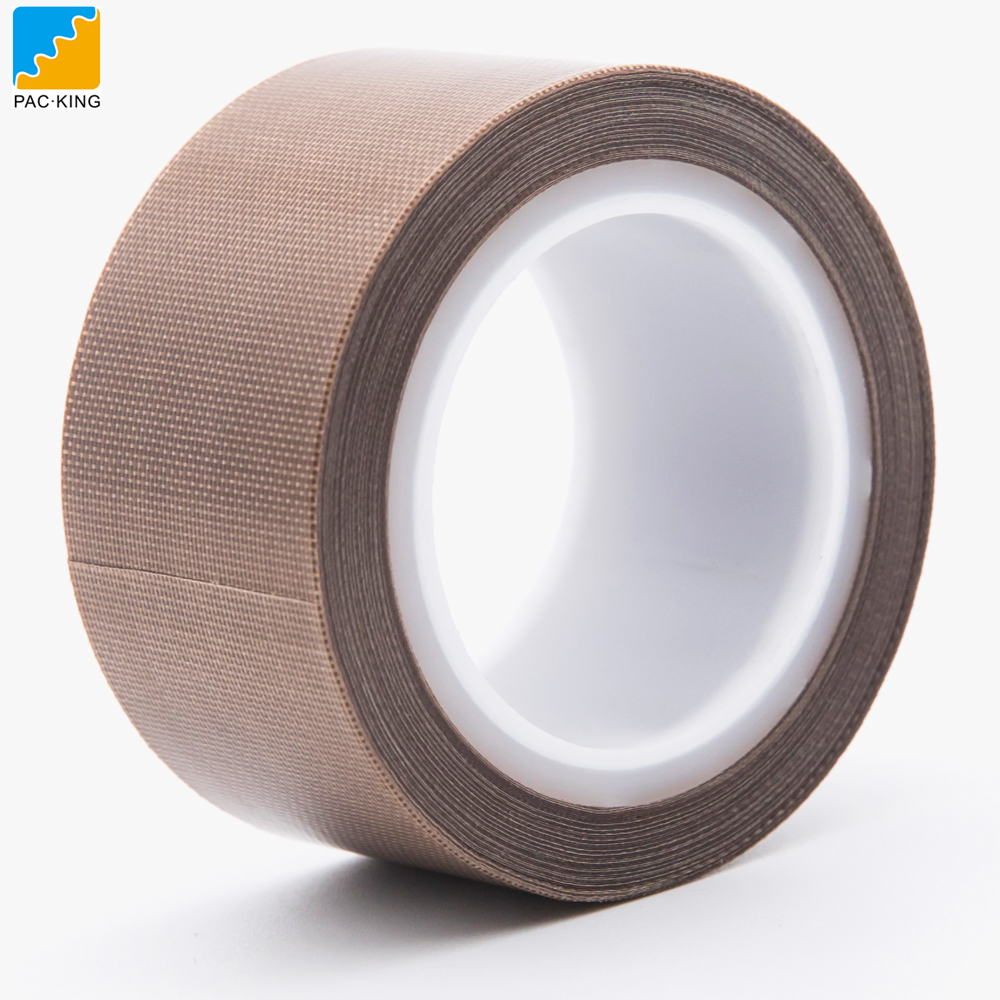

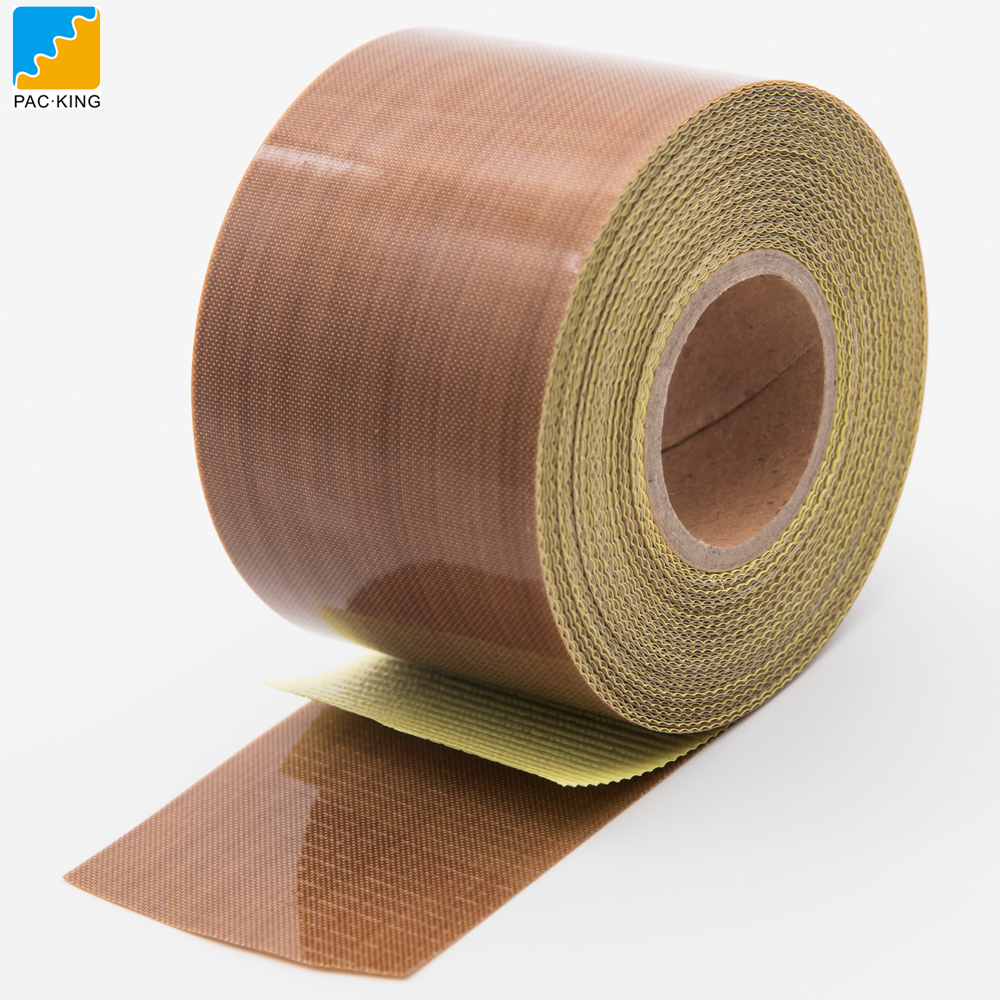

Details of PTFE Fiberglass Adhesive Tape
Backing: Fiberglass Fabric Film
Glue: Silicone
Color: Black , Beige, Brown, etc
Thickness: 150mic, etc
Size: 25mm*10m/50mm*10m, etc
Temperature resistance: -70℃~ 260℃
Core: 1″ /3″plastic core

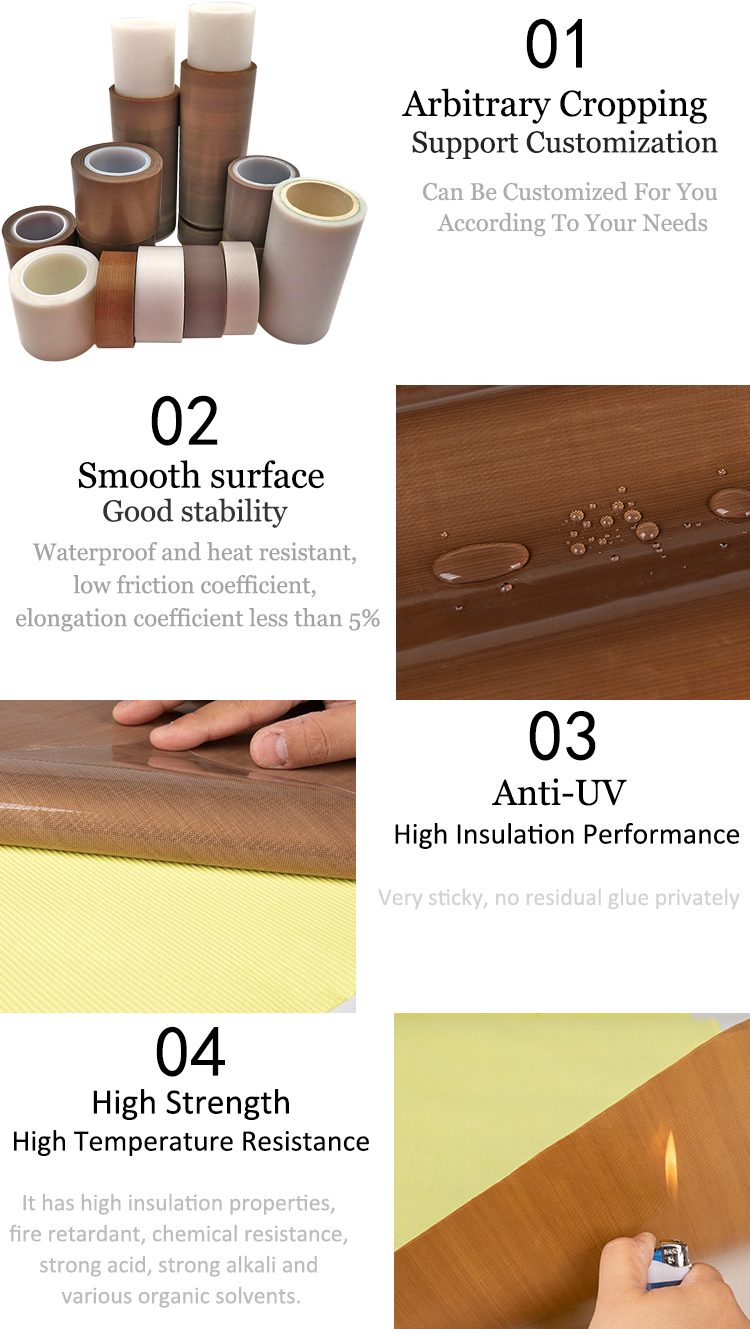

Features of PTFE Fiberglass Adhesive Tape
Models of PTFE Fiberglass Adhesive Tape
|
Type |
Color |
Total thickness |
Carrier |
Temperature resistance |
|
TF0813 |
Coffee |
130±5 MIC |
PTFE fiberglass |
-60~260℃ |
|
TF1318 |
Coffee |
180±10MIC |
PTFE fiberglass |
-20~260℃ |
|
TF1520 |
Coffee |
200±10MIC |
PTFE fiberglass |
-20~250℃ |
|
TF2329 |
Coffee |
290±10MIC |
PTFE fiberglass |
-20~250℃ |
|
TF120C |
Coffee |
120±5MIC |
PTFE fiberglass |
-60~260℃ |
Technical Data of PTFE Fiberglass Adhesive Tape
| Part No. | TF0813 |
| Adhesive thickness | 50mic |
| Total thickness | 130±5mic |
| Adhesive weight | 70g/㎡ |
| Total gram weight | 280g/㎡ |
| Tensile strength | 295 – 305N/25mm |
| Peel adhesion | 10.2N/25mm |
| Volume inherent resistance | 1018 |
| Insulation damage voltage | 1.1 – 1.4KV |
| Fire resistance | Good |
| Weather resistance | Superb |
| Temperature resistance | -60~260℃ |
| Part No. | TF80C |
| Grey cloth thickness | 60±10mic |
| Total thickness | 80±5mic |
| Grey cloth model | 1080 |
| Grey cloth weight | 45g/㎡ |
| Total gram weight | 145±5g/㎡ |
| Dielectric strength | 2.6±0.0025KV/mm |
| Warp strength | 500N/5cm |
| Weft strength | 480N/5cm |
| Tear strength | 5±2N |
| Temperature resistance | -60~260℃ |
Applications of PTFE Fiberglass Adhesive Tape
Used for electronic appliance, such as cooking mat series, conveyor belt, fusing belt, mesh belt, etc.
