PVC Fine Line Tape
PVC Fine Line Tape
PVC Fine Line Tape
PVC Fine Line Tape
PVC Fine Line Tape
PVC Fine Line Tape
PVC Fine Line Tape
PVC Fine Line Tape
PVC Fine Line Tape
PVC Fine Line Tape
PVC Fine Line Tape
PVC Fine Line Tape
PVC Fine Line Tape

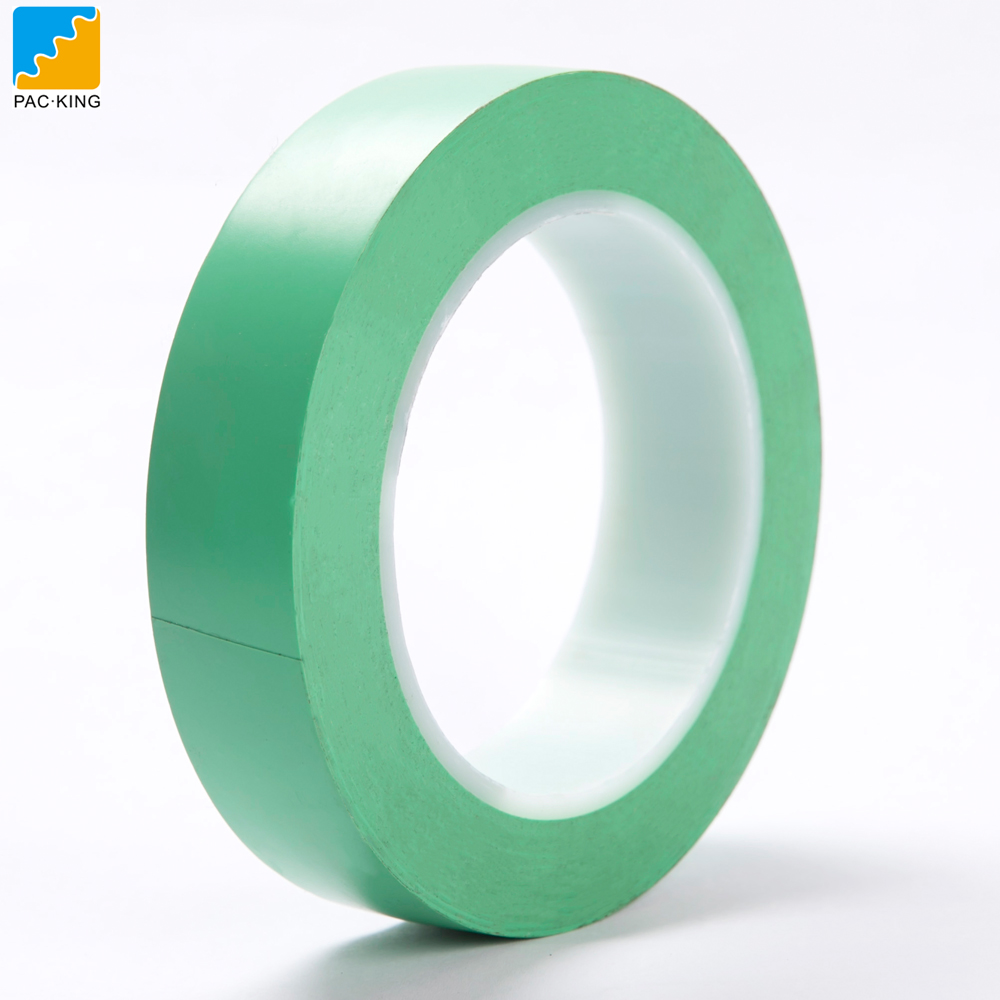

PVC fine line tape is using Plasticized PVC film as backing material and coated with natural rubber adhesive. It provides masking protection for complex curved lines, sharp curves, irregularly shaped panels, over rivets and into seams. It has the temperature resistance of 163C in 60 minutes at least.

Chat now Leave a message

Details of PVC Fine Line Tape

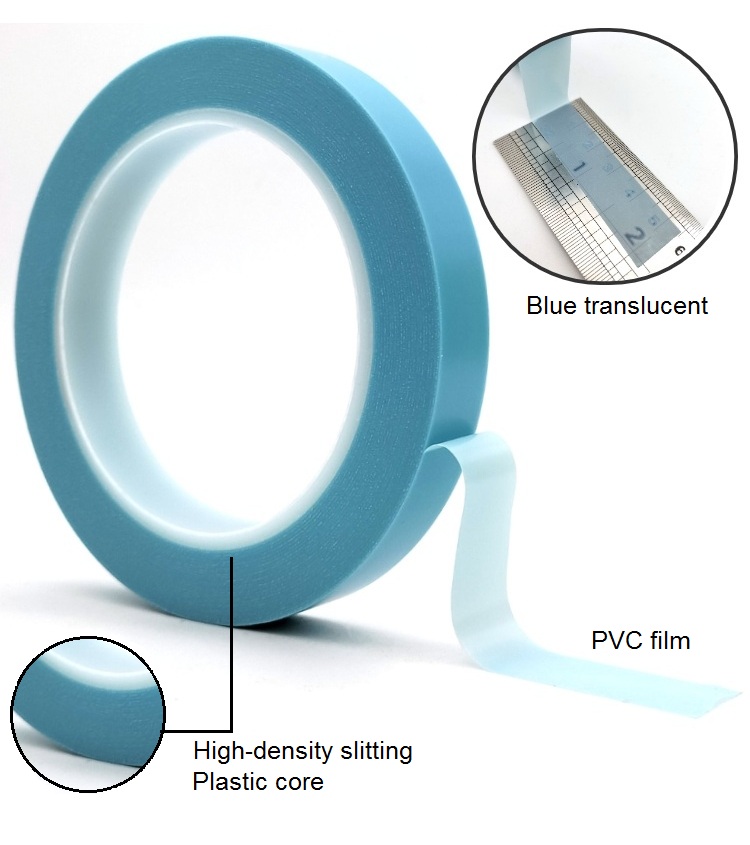

Material: Plasticized PVC film
Adhesive: Rubber

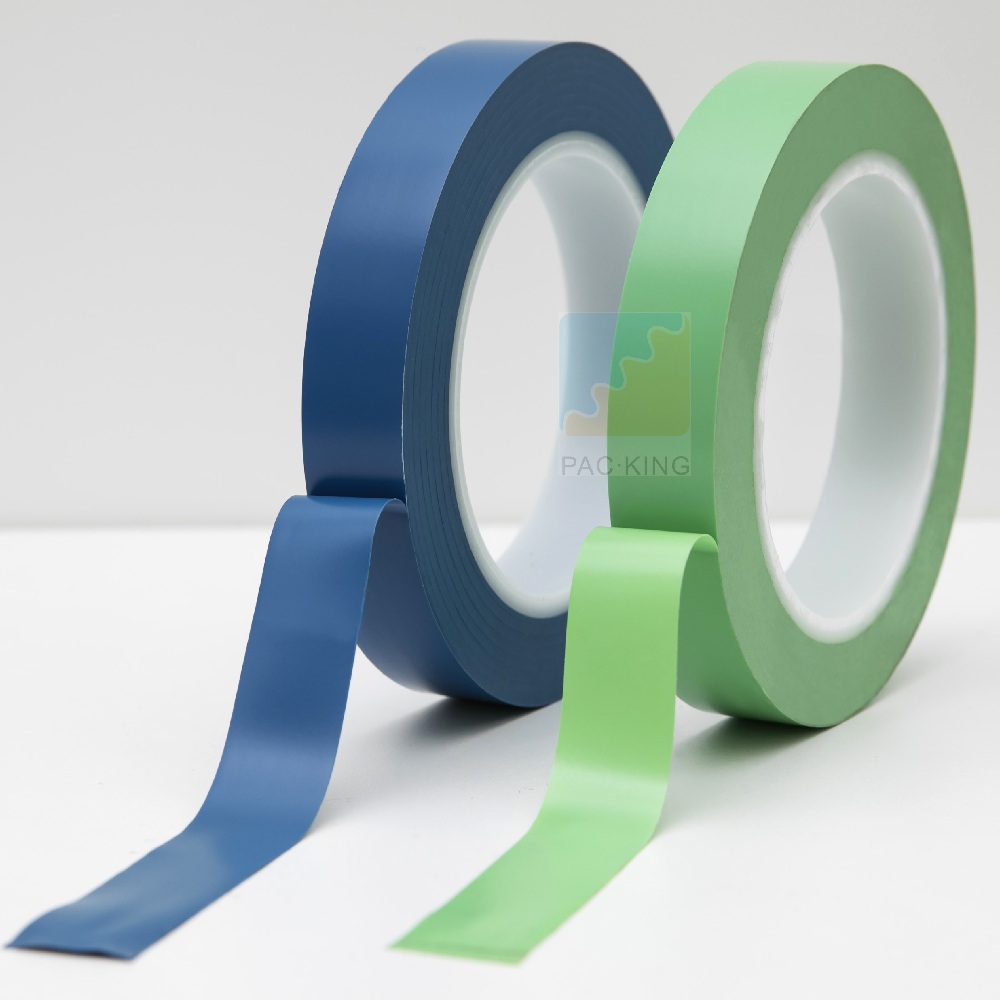

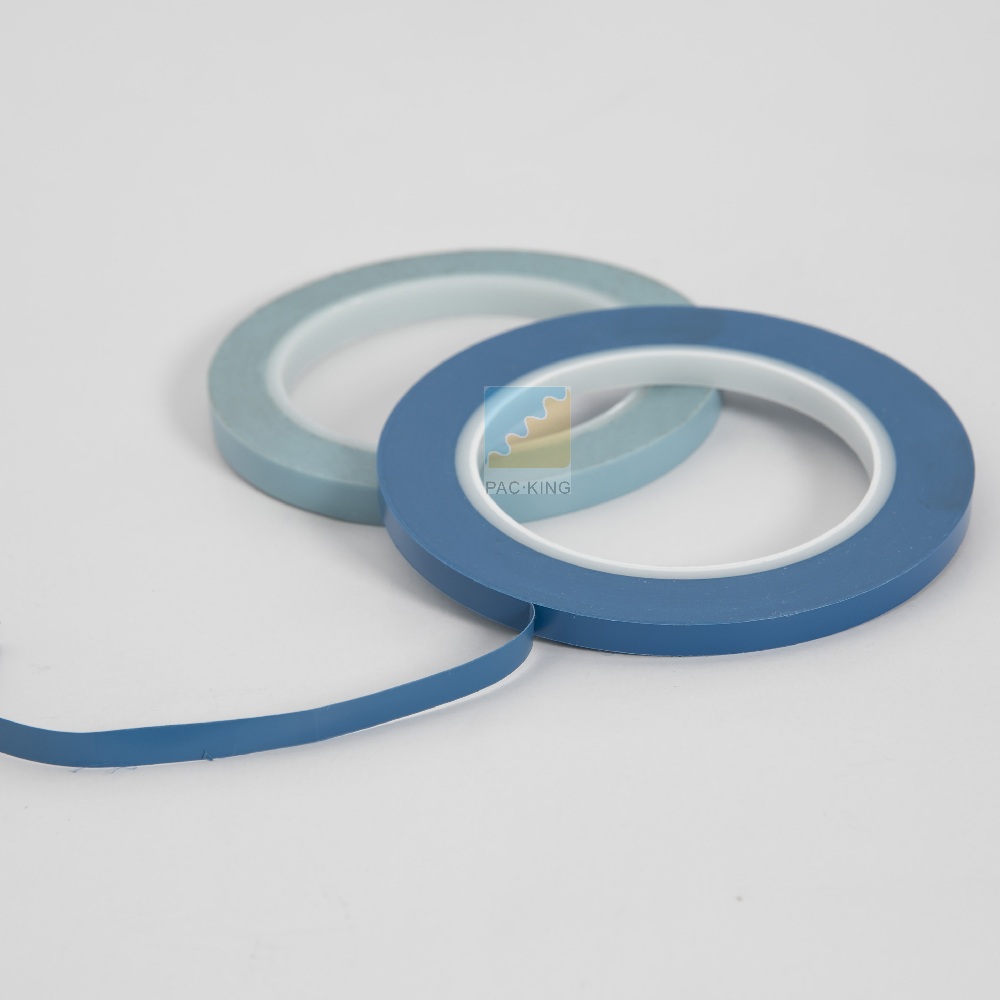

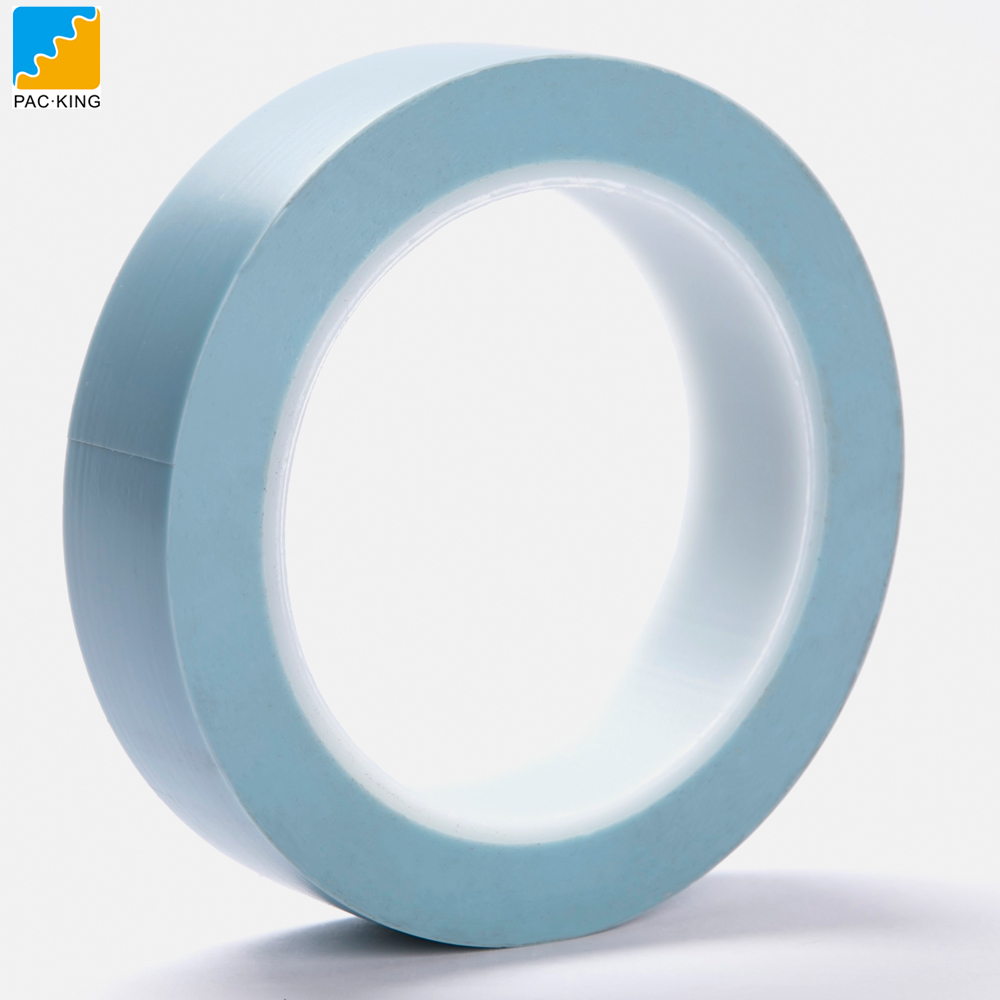

Color: Blue translucent/dark blue/green/yellow, etc
Thickness: 120/150mic
Log Roll Size: 1250mm x 33m

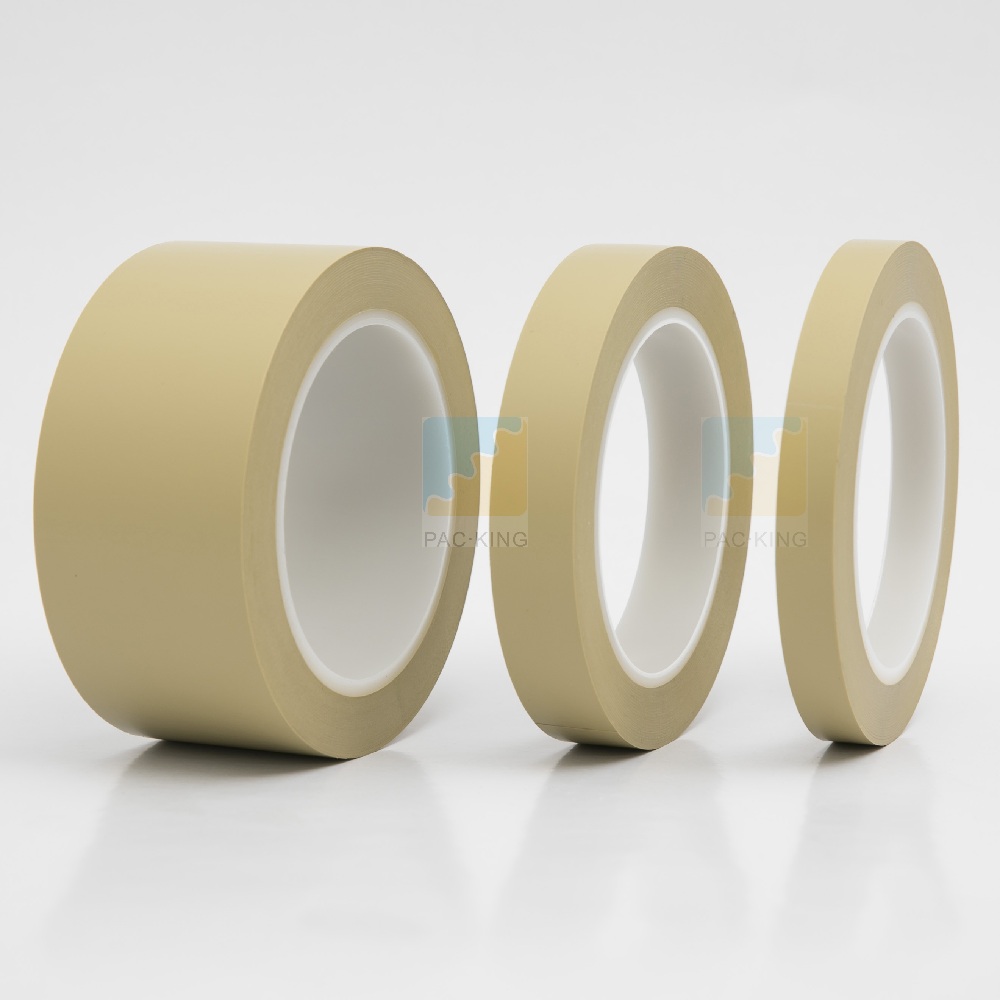

Cut Roll Size: 12mm/19mm/48mm x 33m
Features:
* Electrically insulated
* No residue left when peeled off
* Unique glue-formulation & strong adhesion
* Waterproof & excellent resistance to corrosion

Technical Data of PVC Fine Line Tape

We can do different width/thickness/length, the following is for reference only
Part No.
PFLT120
Total thickness
120±5mic
Backing material
Plasticized PVC film
Adhesive
Natural rubber adhesive
Elongation at break
>100%
Adhesion to steel
2.7 N/cm
Adhesion to backing
2.1 N/cm
Tensile strength
25N/cm
Temperature resistance
150°C 60mins

Applications of PVC Fine Line Tape

It is provides masking protection for complex curved lines, sharp curves, irregularly shaped panels, over rivets and into seams.
